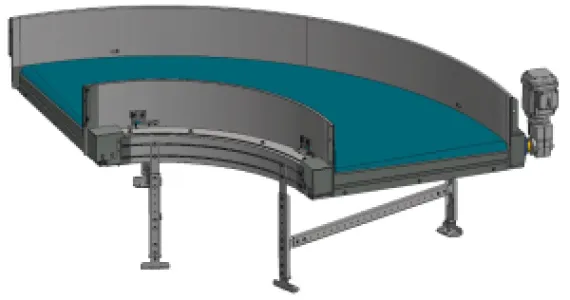

The TS 1600-105 Airport Belt Curve is the result of our constant drive to support the needs of baggage handling system operators and system integrators. The holistic construction concept combines the proven reliability of the Transnorm belt curves with best-in-class energy consumption, smooth operation and maintenance-friendliness. The results are considerably reduced life cycle costs and a high level of economy.

The Transnorm Airport Curve offers the following benefits:
- Best-in-class in performance, reliability, energy consumption and maintenance-friendliness
- Robust construction with low self-weight optimized in terms of weight, space and installation
- Ease of integration in new and existing baggage handling systems
- Patented belt guiding system and conical drums for maximum reliability and smoothness in running
- Low tension conveyor belt drive across the entire width of the belt enables extremely long deployment times
- Belt slides on highly solid laminated wooden sheets

TRANSNORM Belt Conveyor - High conveying speeds and careful handling with exemplary running smoothness.

The belt conveyor TS 1200 with terminal drive is the ideal choice for in-house transport of a wide range of cartons, packed and unpacked unit loads as well as bins and trays.It is a sophisticated and standard belt conveyor system that is characterised by a high degree of flexibility and a comprehensive range of accessories.A special feature of this type is the terminal drive which allows a very flat and short design. This makes the TS 1200 a most economic solution, suitable as a short track conveyor, discharge conveyor or timing belt

TRANSNORM Belt Conveyors provide the following benefits:

• Low noise development even at high speeds of conveyance

• Particularly gentle product handling with sensitive goods for transport

• No slippage between the goods being conveyed and the transport level

• Drive pulley with wear-proof friction cover Fields of Application Parcel conveying systems with a wide range of box sizes and qualities Order picking, shipping systems and Order return systems

• Goods receipt and dispatch areas

• Connection of production areas

• Loads with uneven bases that are not suitable for roller conveyors

 The TRANSNORM VertiSwitch TS 6610 has been developed especially to meet these requirements. This is a completely standardised, vertical distribution unit, which can be deployed optionally as a diverting unit (line distribution) or merging unit (line consolidation). In addition, the modular design enables an extended area of application in logistics systems. This product is characterised by an open and robust construction, modular design and a high level of dynamism in the swivel movements. Considering prevalent flight baggage dimensions (L = 900 mm), diversions can be achieved of up to 1,800 pieces of baggage/hour with a conveyor speed of 1.5 m/sec

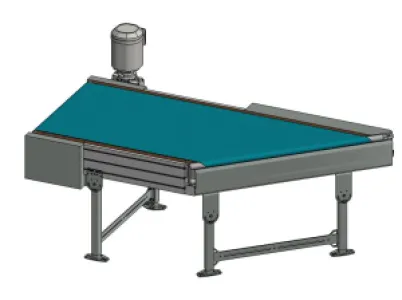

The TRANSNORM TS 6200 FH is a belt conveyor with an angled terminal at one end allowing product to feed onto or discharge from a main line at 30° or 45°. Using a single width belt and small diameter fixed-position terminal pulleys, it is possible to handle a wide variety of products. The conveyor is available in either merge or divert versions.

The main function of the TS 6200 is to connect sorting or collecting conveyors. This continuous development of the series, has optimized traction and reduced power consumption. The angled pulley is a non rotating 40 mm steel shaft fixed to the main frame. Both conveyor versions use the same frame geometry. The drive station is configured to suit the conveying direction. Belt tracking is controlled by a guide station which continuously adjusts the belt automatically.
